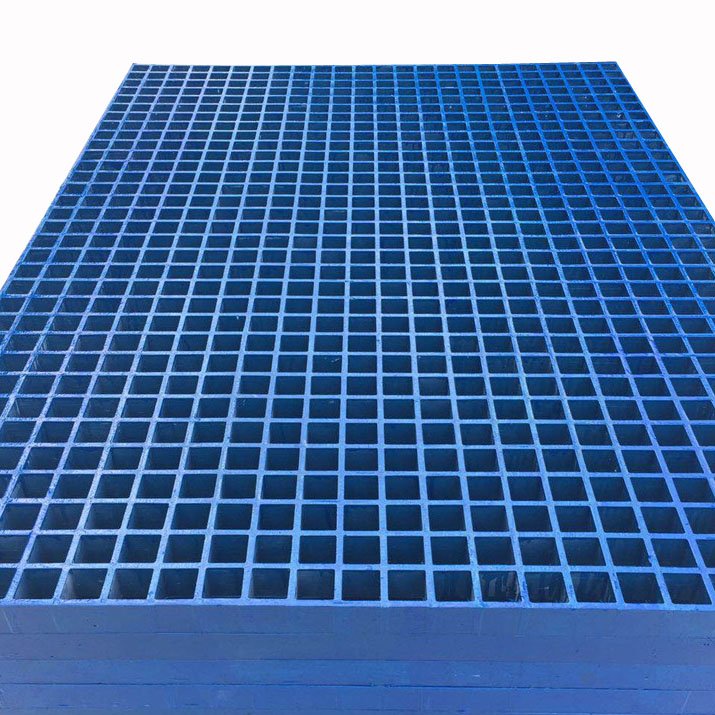

High Quality FRP Fiberglass Reinforced Grating

High Quality FRP Fiberglass Reinforced Grating

Using glass fiber twistless roving as reinforcement material and thermosetting resin as matrix, the glass fiber is interleaved and woven on a large metal mold to cast the mould-shaped grille, which has national standard fixed holes and smooth surface and frosted non-slip surface. Common specifications: 38*38*20mm, 38*38*25mm, 38*38*30mm,38*38*38mm,50*50*50mm. Can also make the whole board size of 1.22x2.44m, 1.22x3.66m, 1x4m, special size can be arbitrarily cut splicing.

ThicknessMesh SizeStandard SizeArea Weight
(kg/m3)
1338 x 38915x3050, 1220x2440, 1200x36006.0
2538 x 38915x3050, 1220x2440,1220x3660,1000x400011.9
40 x 401007x3007,1007x407011.8
25 x 1001007x300712.8
25 x 1001007x300714.4
3038 x 38915x3050, 1220x2440,1220x3660,1000x400014.8
40 x 401007x407014.7
20 x 201007x407018.9
25 x 251000x400017.6
3838 x 38915x3050,1220x3660,1000x4000,
1524x3962
18.8
40 x 401007x407018.2
19 x 191220x366022.2
25 x 251000x400021
4040 x 401007x3007,1007x407019.3
50.850.8 x 50.81220x3660,1524x396221.7
